Drumski LED signali

LL-200-m je modularni LED izvor svetlosti za koriščen za drumske signale i putne prelaze.

Pošaljite upit
Drumski LED signali

Drumski LED signali

LL-200-m je modularni LED izvor svetlosti za koriščen za drumske signale i putne prelaza.

Podržava dnevni, noćni i trepćući režim rada, uz duži radni vek i niže troškove održavanja. Fleksibilan dizajn omogućava kompatibilnost sa različitim relejnim i elektronskim sistemima signalizacije.

Drumski LED signali 1

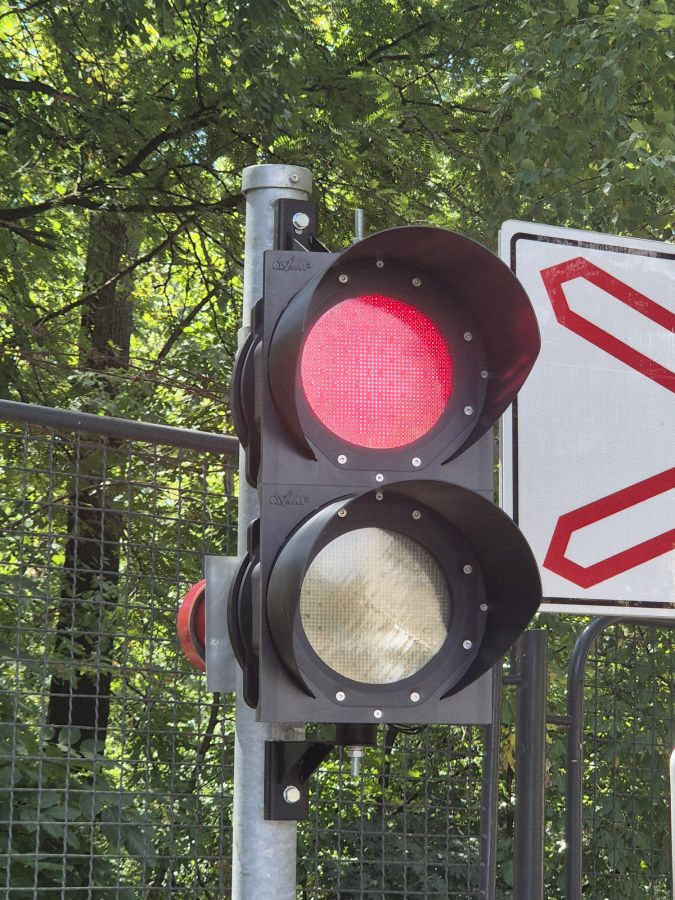

Drumski LED signali 2

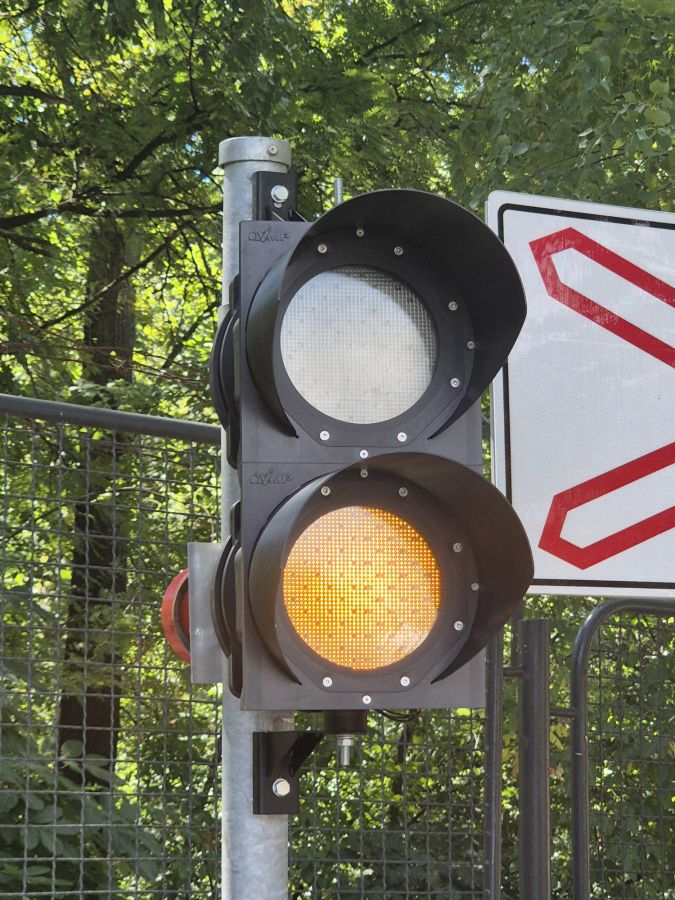

Drumski LED signali 3

Kontaktirajte naš tim za više informacija i detaljnu ponudu prilagođenu vašim potrebama.

Kontaktirajte nas

Tehničke specifikacije

Input voltage range AC
from 50VAC to 240VAC
Input voltage range DC
from 10VDC to 50VDC
Rated power
from 5VA to 30VA (normal working range)
Operating temperature range
from -40°C to +85°C (ambient temperature)
Distance from the station
up to 5km with railway cable 0.9mm
Housing material
plastic PA66
Housing protection
IP54 level for standard use, can be upgraded to IP68
Signal diameter
70mm, 100mm, 136mm, 160mm, 200mm, 210mm
Available colors
Red, Yellow, Green, White and Blue
Electrical protection
Galvanic isolation, integrated thermal, over-current, over-voltage and transient protection
Mode of operation
Day and Night mode of operation with different lighting level
States of operation
Three different states of operation so that interlocking can detect device state
