Železnički LED signali

LL-000-m je pouzdan LED izvor svetlosti za glavne železničke signale, namenjen zameni klasičnih sijalica u relejnim sistemima.

Pošaljite upit
railway-led-signals

Železnički LED signali

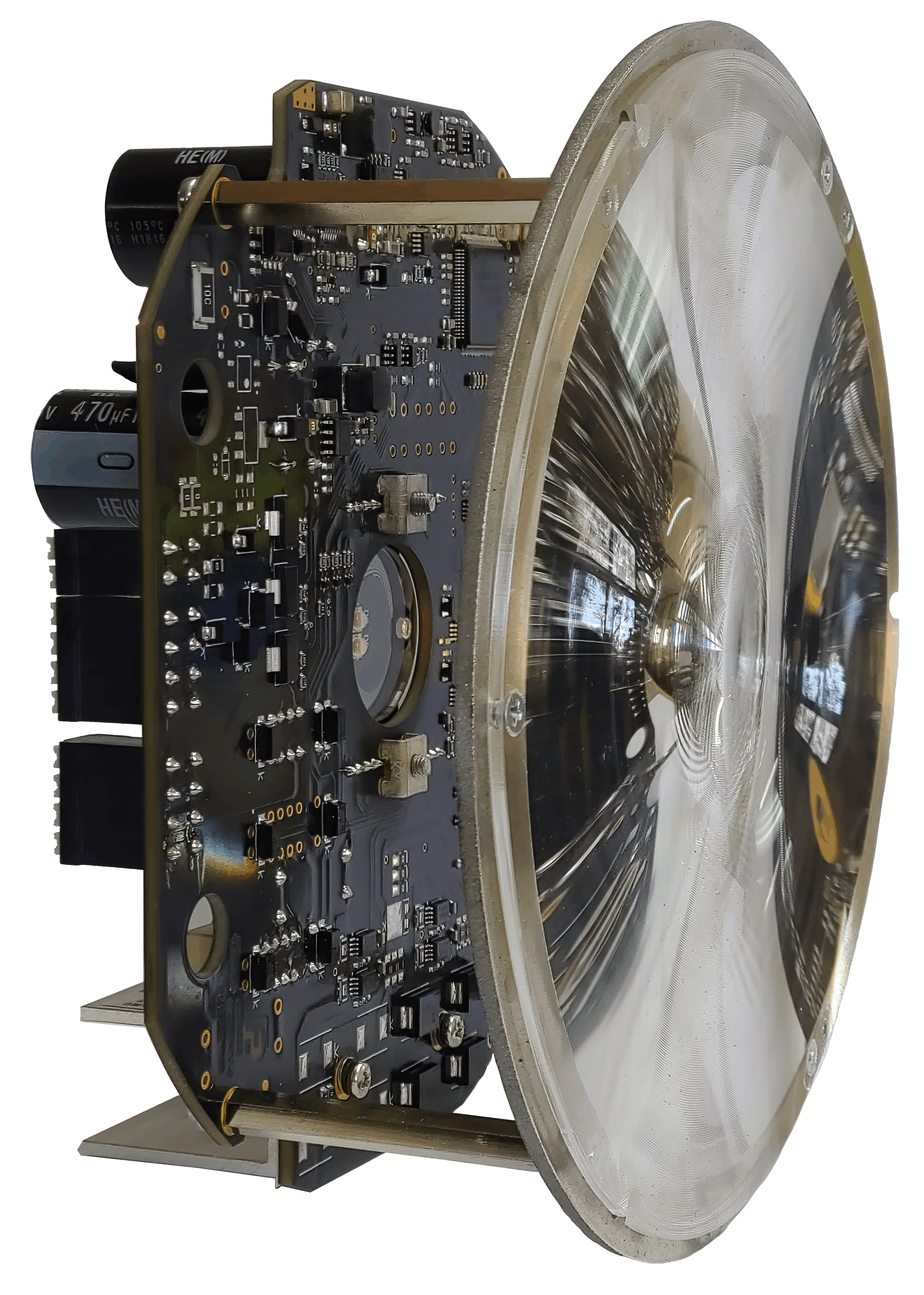

LL-000-m je modularni LED izvor svetlosti za glavne železničke signale, namenjen zameni klasičnih sijalica u relejnim sistemima kao što su SpDrS-64, WSSB i Domino55.

Podržava dnevni, noćni i trepćući režim rada, uz duži radni vek i niže troškove održavanja. Fleksibilan dizajn omogućava kompatibilnost sa različitim relejnim i elektronskim sistemima signalizacije.

railway-led-signals
railway-led-signals
Železnički LED signali 3
Železnički LED signali 4
Železnički LED signali 5
Železnički LED signali 6

Kontaktirajte naš tim za više informacija i detaljnu ponudu prilagođenu vašim potrebama.

Kontaktirajte nas

Tehničke specifikacije

Input voltage range AC
from 50VAC to 240VAC
Input voltage range DC
from 10VDC to 50VDC
Rated power
from 15VA to 30VA (normal working range)
Operating temperature range
from -40°C to +85°C (ambient temperature)
Distance from the station
up to 5km with railway cable 0.9mm
Housing material
aluminum alloy housing
Housing protection
IP54 level for standard use, can be upgraded to IP68
Signal diameter
70mm, 100mm, 136mm, 160mm, 200mm, 210mm
Available colors
Red, Yellow, Green, White and Blue
Electrical protection
Galvanic isolation, integrated thermal, over-current, over-voltage and transient protection
Mode of operation
Day and Night mode of operation with different lighting level
States of operation
Three different states of operation so that interlocking can detect device state
